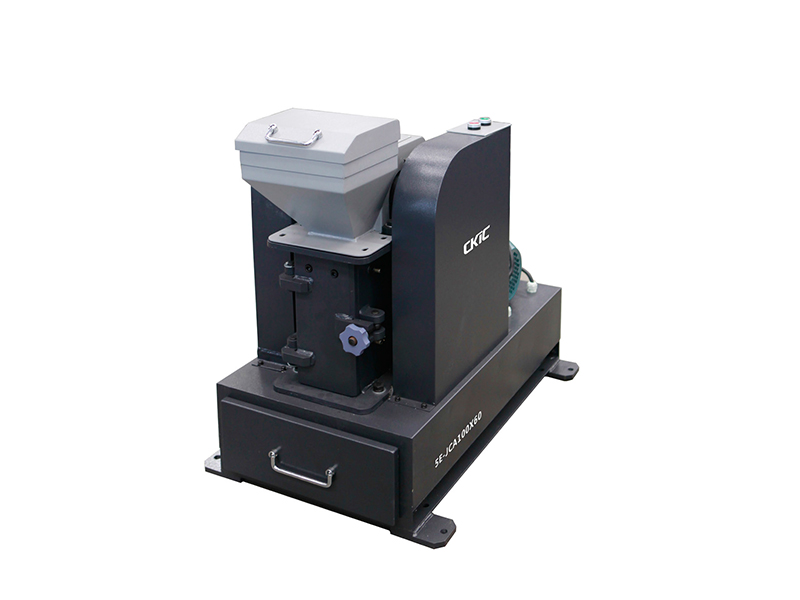

5E-JCA Series Jaw Crusher

5E-JCA Series Jaw Crusher is designed for primary crushing of medium-hard, brittle and tough materials. Typical sample material includes coal, coke, limestone and so on.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case

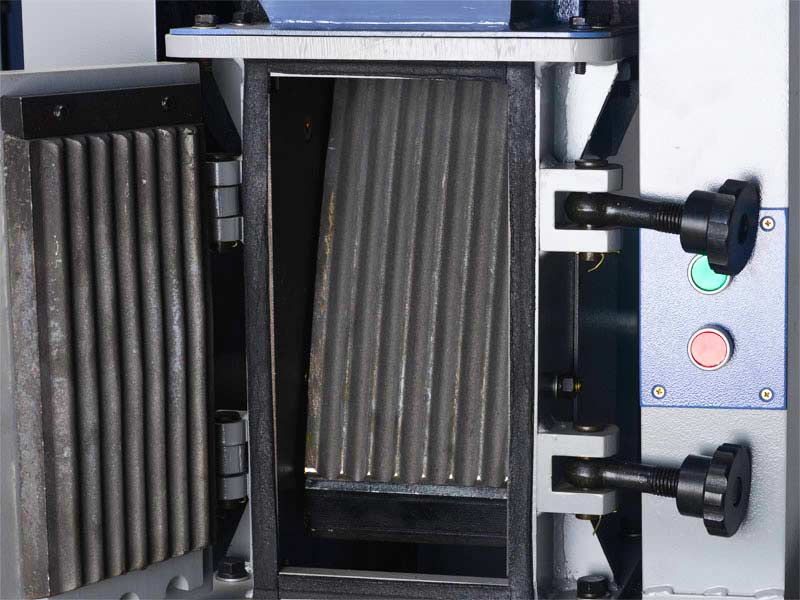

Features:1. Jaw plates with BTMcr20 material are reversible for extended life.

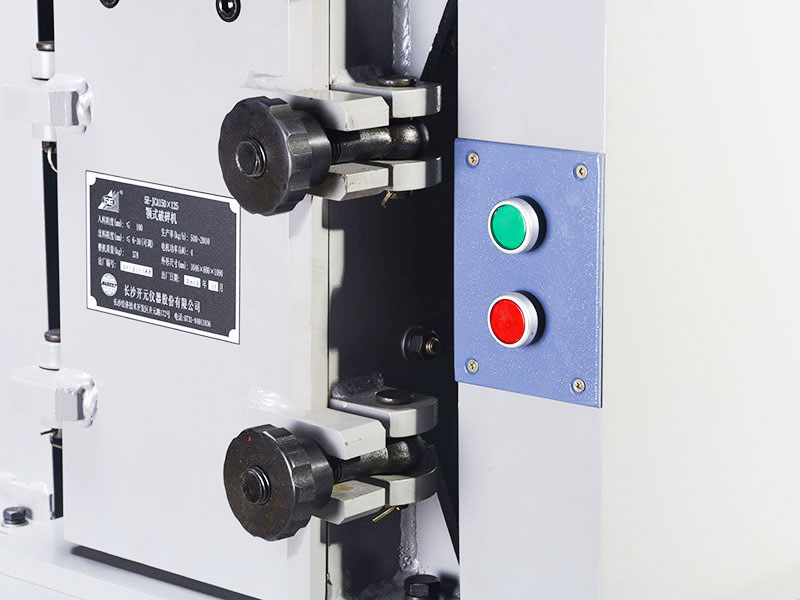

2. Patented design for easy and quick jaw gap adjustment provides good control of product sizing while minimizing downtime and labor service requirements.
3. Hermetic structure improving the operation environment and reducing sample contamination.
4. Improved safety with protection shielding and emergency button.

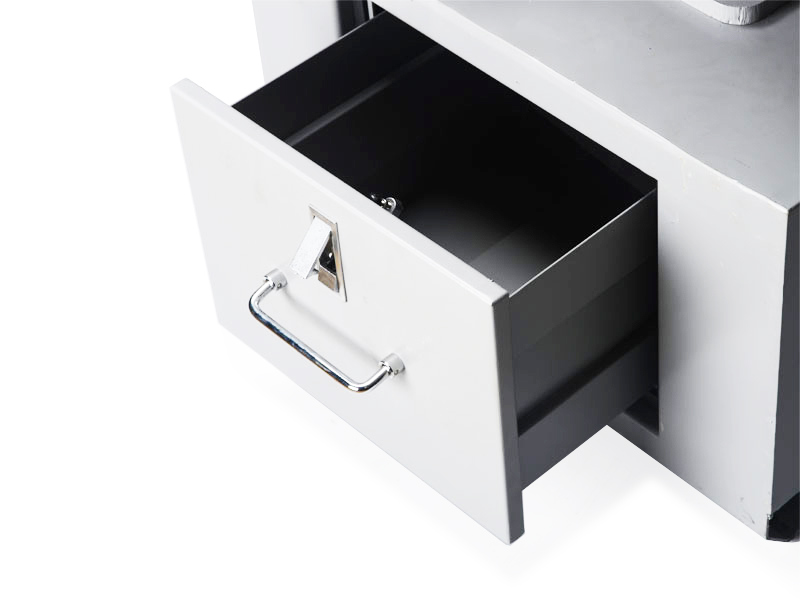

5. Access to the chamber through the front door makes it convenient to clean.

Model 5E-JCA100×60 Jaw Crusher 5E-JCA150×125 Jaw Crusher
Size of Feed Inlet 100×60mm 150×125mm
Feed Size ≤50mm ≤100mm
Discharge Size ≤3-13mm adjustable ≤6-38mm adjustable
Moisture Adaptability ≤12% ≤12%
Approx. Hardness of Feeding Sample HRC48-55 HRC48-55
Throughput 200~500kg/h 500~2000kg/h
Power Supply 3 phases, AC380V±10%, 50/60Hz , 1.5kW 3 phases, AC380V±10%, 50/60Hz , 4kW
Noise ≤85dB ≤85dB
Net Weight 220kg 378kg
Dimensions(L×W×H) 880mm×580mm×790mm 1046mm×600mm×1090mm
