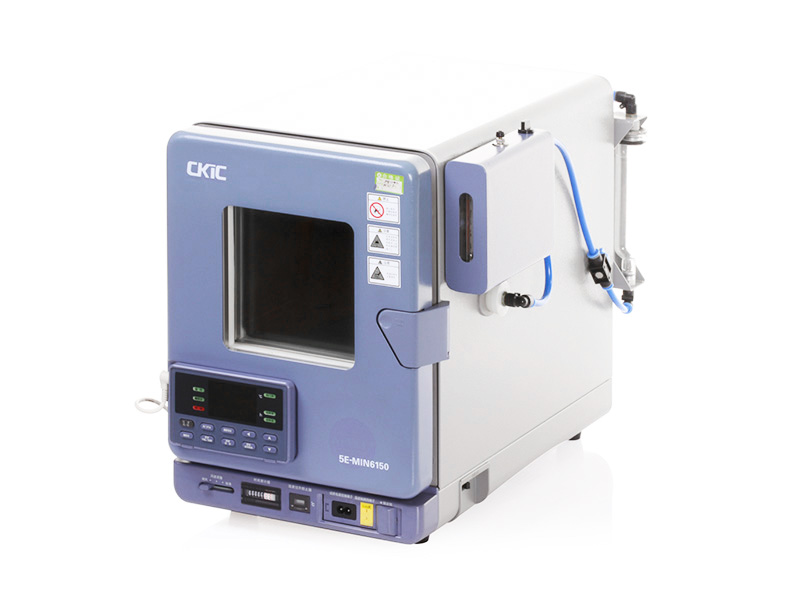

5E-MIN6150 Mini Moisture Oven

5E-MIN6150 Mini Moisture Oven is used to determine the moisture in coal, coke, heavy oil, biomass and other liquid and solid substance, which is widely applied in power plants, coal industry, metallurgical, petrochemical, cement plants, research institutes and inspection company.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case

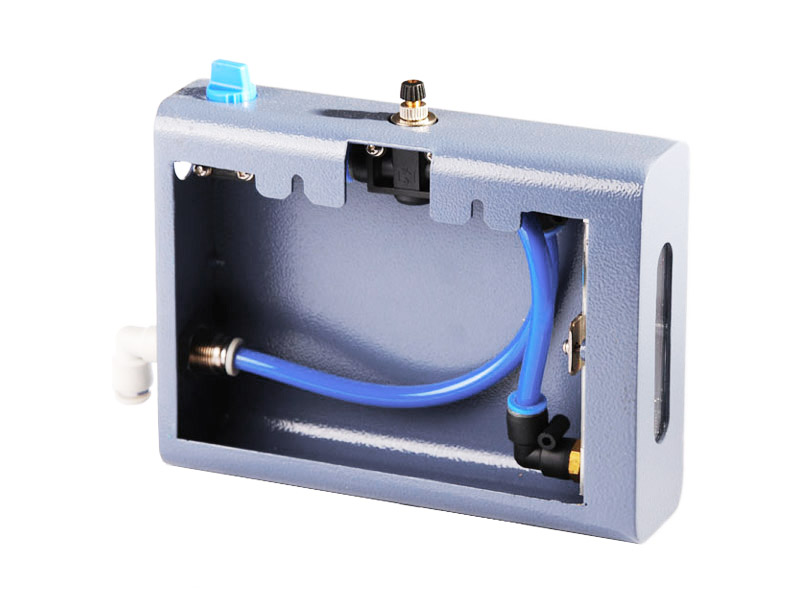

Standard Configuration:Nitrogen introducing device
Gas regulator

Easy Operation
1. Mini instrument with compact structure.
2. Dual function: Air introduction and Nitrogen introduction are available for choice.
3. Automatic work time can be set within 100 hours for unattended operation.
4. Equipped with stainless heating tube, stainless chamber and automatic ventilation port.

High Efficiency
High temperature control precision, quick heating speed and good thermal insulation performance.

High Safety
Equipped with intelligent control system, electric leakage protection and over temperature protection device.

Cost Saving
Small chamber could save the nitrogen gas and keep the balanced temperature.

Model 5E-MIN6150 Mini Moisture Oven
Comforms to Method AS 1038.1, ASTM D3302/D3302M/D7582/E871,
UNI CEN/TS 15414, BS EN ISO18134,
GB/T 211, GB/T 212, GB/T 28731, GB/T 28733, GB/T 30732
Internal Capacity 15L
Exchange Frequency 15 times per hour
Constant Temp.Range 20℃ above the ambient Temp-200℃
Temp.Fluctuation ±0.3℃
Full Load Electric Current 4.5A
Power Supply Single phase, AC220V±10%, 50/60Hz, ≤1kW
Net weight 26kg
Dimensions of Nitrogen Box(L×W×H) 250mm×220mm×280mm
Dimensions(L×W×H) 540mm×300mm×435mm
