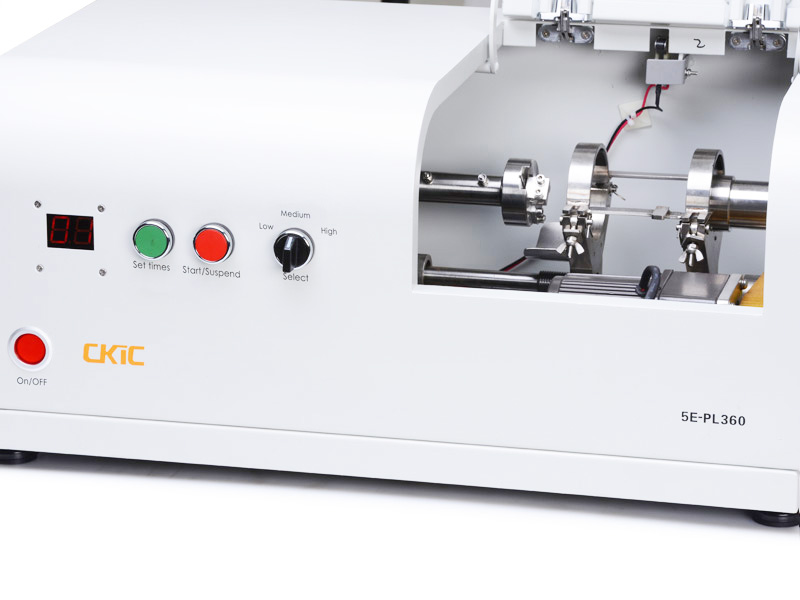

5E-PL360 Automatic Coal Cup Cleaner

5E-PL360 Automatic Coal Cup Cleaner is specially used to clean the coke breeze inside of coal cup after the plastometric indices testing.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case

Features:
1.Free adjustment of impeller rotating speed and cleaning times.
2.Clean coal cup back and forth continuously to ensure full cleaning.
3.Safely operation with sensitive switch, power-off when loading the coal cup.
4.Equipped with position detection and resetting when switched on.

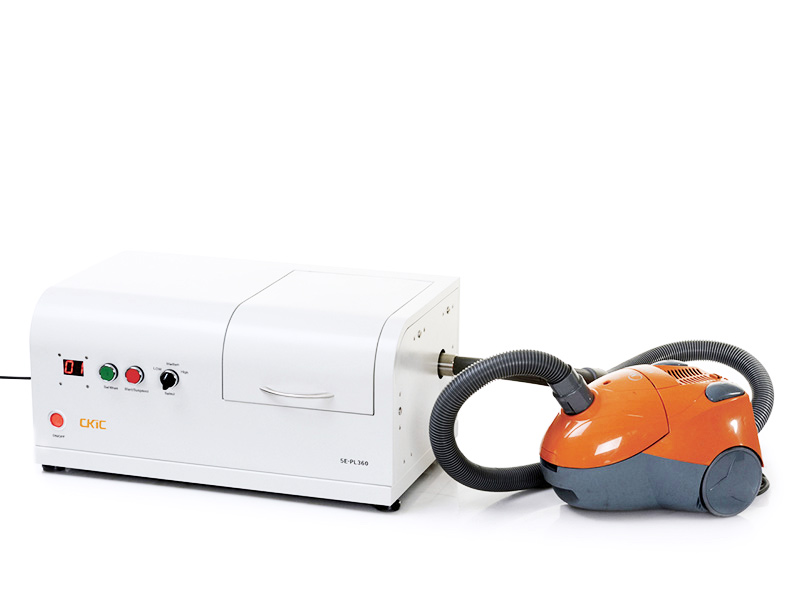

5.Vacuum cleaner connection availabe.

Model

5E-PL360 Automatic Coal Cup Cleaner

Cleaning Times

1-9 settable

Grinding Speed

High, Medium, Low adjustable

Range of Coal Cup Movement

110±5mm

Power Supply

Single Phases, AC220V, 50Hz, ≤2kW

Net Weight

70kg

Dimensión(L×W×H)

614mm×370mm×280mm
